Features:
- CSA and CRN approved
- 100% Continuous Duty Operation
- Quiet and Efficient with energy saving options
- All packages feature a built-in tank with electronic automatic drain, High temperature Air Dryer with prefilter and bypass plumbing kit installed.
- On-board control panel
- 120 Gallon tanks and custom configurations are also available.
- Coast to Coast installation and support
TIPS:
- Rotary Screw compressors work best with minimal idle time - a smaller tank configuration may be optimal for keeping the unit running continuously as recommended.
- Rotary Screw compressors require a regimented maintenance schedule. Ask us about our maintenance packages and automatic reminders.

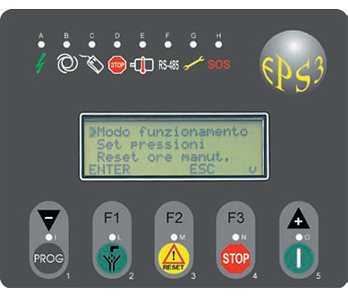

Above LCD Panel only comes with the Direct Drive system.
|
Model # |
HP |
CFM |
Bays* |
Techs* |
Controls |
Tank |
Dryer |
Noise2 |
|
JHRS5-80G3 |
5 |
18 |
5 |
Up to 7 |
Belt Driven with Standard controls |
80 GAL |
Yes |
64 dB(A) |
|
JHRS7-80G3 |
7.5 |
25 |
10 |
7 - 11 |
Belt Driven with Standard controls |
80 GAL |
Yes |
64 dB(A) |
|
JHRS10-80G3 |
10 |
35 |
15 |
12 - 16 |
Belt Driven with Standard controls1 |
80 GAL |
Yes |
67 dB(A) |
|
JHRS15-80G3 |
15 |
51 |
20 |
17 - 20 |
Belt Driven with Standard controls1 |
80 GAL |
Yes |
64 dB(A) |
|
JHRS20-80G3 |
20 |
64 |
25 |
21 - 25 |
Belt Driven with Standard controls1 |
80 GAL |
Yes |
64 dB(A) |
|
JHRS25-80G3 |
25 |
91 |
25+ |
25+ |
Direct Drive with LCD controls |
80 GAL |
Yes |
69 dB(A) |
|
JHRS30-80G3 |
30 |
109 |
25+ |
25+ |
Direct Drive with LCD controls |
80 GAL |
Yes |
69 dB(A) |
All above packages are 575V/3 Phase - other voltages are available.
* Recommendations are for reference only. Having a nitrogen system in your shop could affect this number.
1 Also available in Direct Drive which includes an LCD control panel
2 For reference, a refrigerator operates at approximately 50 dBA, a blender operates at 90 dBa.
